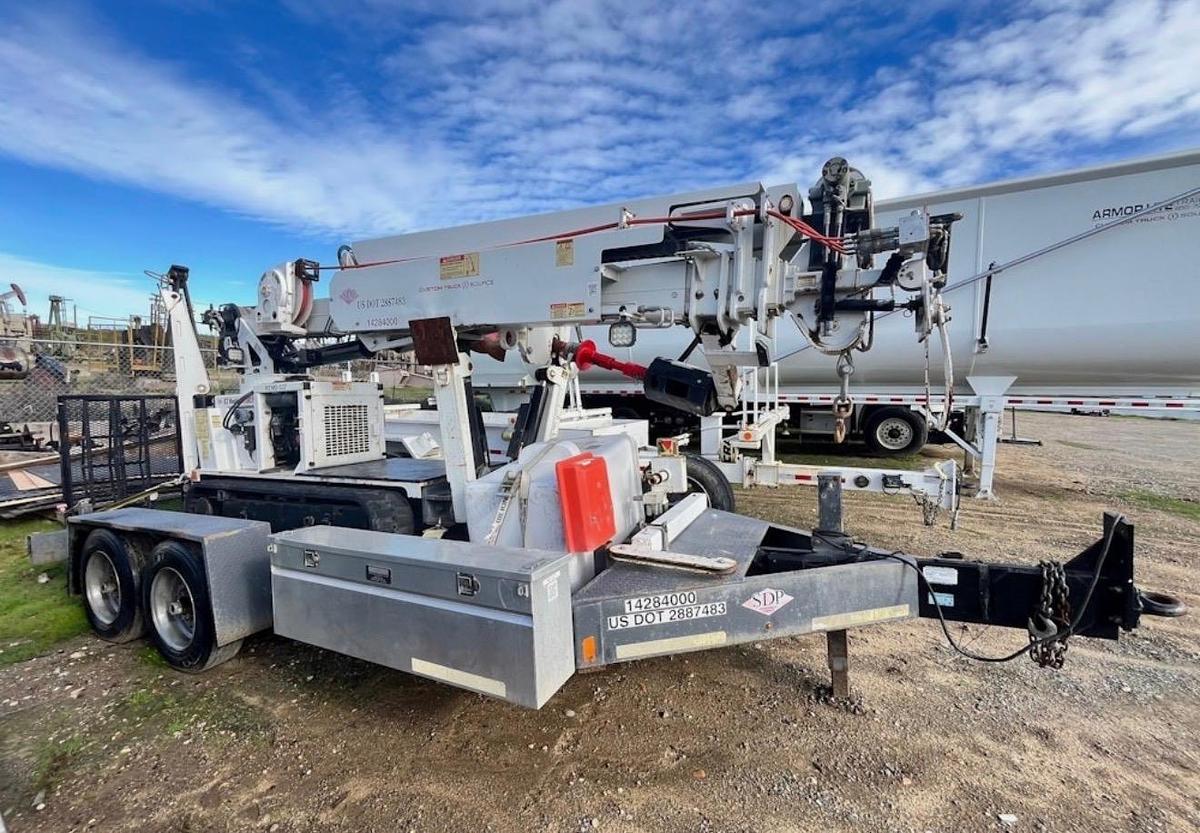

SDP EZ Hauler 55MLP

Basic Specs

General

• Model: EZ Hauler 55MLP
• Type: Mini digger derrick / tracked utility handler
• Purpose: Heavy-duty lifting, material handling in confined spaces

Lifting & Performance

• Maximum Lifting Capacity: 5,500 lb (2,725 kg) with overload protection
• Carrying Capacity: approximately 3,000 lb transport load (on chassis/track frame)
• Sheave Height: ~42 ft boom tip height
• Full 360° continuous rotation work zone
• Insulated to 46 kV Category C for utility applications

Power & Drive

• Engine: Yanmar Minimax 3-cylinder diesel (Tier IV compliant)
• Horsepower: ~24.9–25 HP @ 3600 RPM
• Hydraulic System: Fixed displacement gear pump (~14 gpm)
• Drive: Hydraulic track drive with skid steering
• Hydraulically extendable tracks for narrow transport & wide work stance

Dimensions

• Overall Length (including crane): ~17 ft
• Chassis Length: ~10 ft 6 in
• Width – Tracks Retracted: ~35.5 in
• Width – Tracks Extended: ~51 in
• Height (crane stowed): ~6 ft 10 in
• Width with Outriggers Extended: ~11 ft 9 in
• Height with Outriggers Mounted: ~5 ft 2 in (62 in)

• Hydraulic pole guides & adjustable track drive
• Pressure/flow adjustable tool circuit
• Remote control operation (wireless or proportional)
• Stable on 20° side slopes
• Boom elevation: +80° to −10° from horizontal

The EZ Hauler 55MLP is used for:

• Utility pole handling
• Confined space lifting & rigging
• Line work where larger trucks can’t access
• Tracked mobility over rough or uneven terrain
